Servopluvio

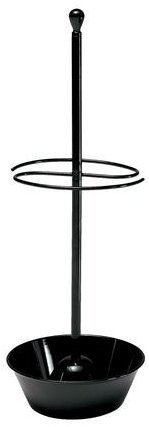

Servopluvio is a classic design of an umbrella stand, which is part of the Castiglioni family of Servi furniture. Designed with a black or aluminium colour painted aluminium water tray and steel support rod.
3D modelling
I drew the profile of the mast and base with Bezier curves, thus I used the function Rotational Surface to get the entire structure. Very hard was draw the crutches. To do that I made, with Hermite curves, several curved tube placed at suitable. The complex geometry is then obtained by composing the tubes.

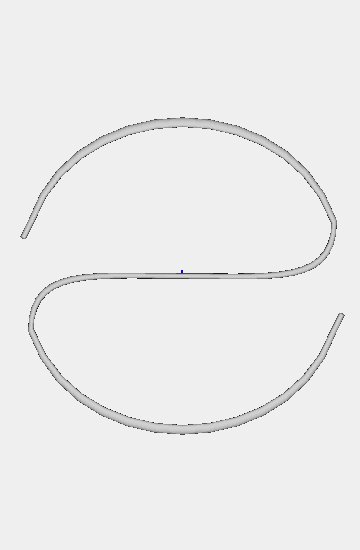

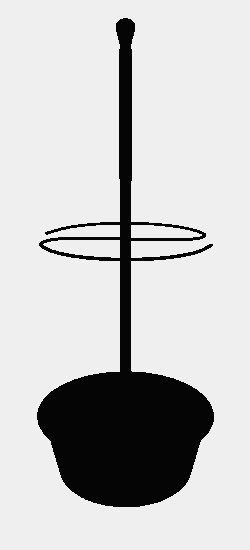

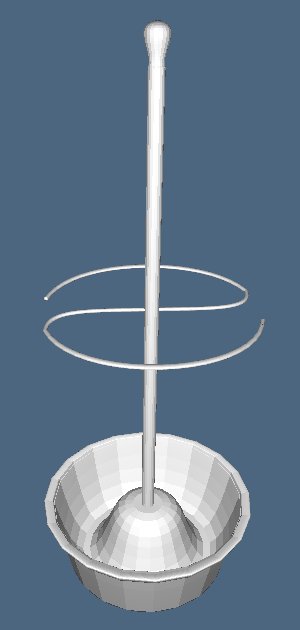

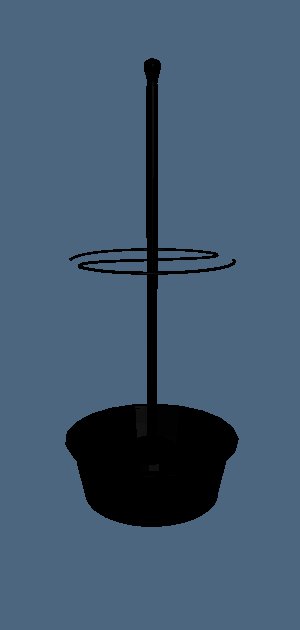

Screenshot of the 3D model
